JSON<->XML conversion sample program.
In this sample, you can do the following:
- Parse JSON string and convert it to XML. Then save it to a file.
- Parse the XML document and converts it to a JSON string. Then save it to a file.
To use this sample, link the following library to your application program and add the directory to the include files directory.
Header file:
lib.h : System E6.0 or later.Library file:
jansson.h
jansson_config.h
jansson_log.h
XML.h
CodeConversion.h : ver.1.1.1 or later.
libJansson.a
libXML.a
libCodeConversion.a : ver.1.1.1 or later.
libSTARTUPOPH5000.a : System E6.0 or later.
Note:
When adding library files, link them in the above order.
-

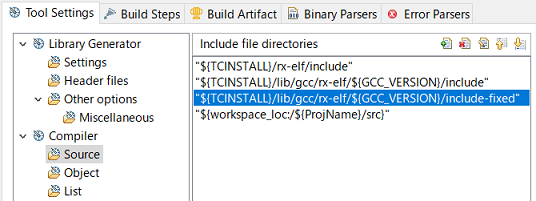

When adding a include file directory, follow the steps below to modify the project.
- Select the project in the [Project Explorer] view of e² studio and click [Properties] on the [Project] menu to display the [Properties] screen.
- Click [C/C++ Build] → [Settings] → [Tool Settings] → [Compiler: Source] → [
button].
- When the [Include file directories] dialogue appears, specify the directory in the following format in the [Directory] field and click [OK].
"${TCINSTALL}/lib/gcc/rx-elf/${GCC_VERSION}/include-fixed"
- Click [OK] to close the [Properties] screen.
sampleConvertJsonToXml()
Parse the following JSON string and converts it to XML. Then save it to a file.
jsonText1
[
{
"name": "Sample001",
"itemID": [
"ID001"
],
"score": 0,
"result": null
},
{
"name": "Sample002",
"itemID": [
"ID001",
"ID002"
],
"score": 35.5,
"result": false
},
{
"name": "Sample003",
"itemID": [
"ID001",
"ID003"
],
"score": 95,
"result": true
}
]
jsonText2
{
"object1": {
"name": "Sample001",
"itemID": [
"ID001"
],
"score": 15.5,
"result": null
},
"object2": {
"name": "Sample002",
"itemID": [
"ID002"
],
"score": 35.5,
"result": false
},
"object3": {
"name": "Sample003",
"itemID": [
"ID001",
"ID002"
],
"score": 90,
"result": true
},
"object4": {
"name": "Sample004",
"itemID": [
"ID001",
"ID003"
],
"score": 95,
"result": true
}
}
sampleConvertXmlToJson()
Parse the following XML document and converts it to a JSON string. Then save it to a file.
XmlDocument1
<?xml version="1.0" encoding="UTF-8"?>
<root type="ARRAY">
<array_value type="OBJECT">
<name type="STRING">Sample001</name>
<itemID type="ARRAY">
<array_value type="STRING">ID001</array_value>
</itemID>
<score type="INTEGER">0</score>
<result type="NULL">null</result>
</array_value>
<array_value type="OBJECT">
<name type="STRING">Sample002</name>
<itemID type="ARRAY">
<array_value type="STRING">ID001</array_value>
<array_value type="STRING">ID002</array_value>
</itemID>
<score type="REAL">35.5</score>
<result type="BOOLEAN">false</result>
</array_value>
<array_value type="OBJECT">
<name type="STRING">Sample003</name>
<itemID type="ARRAY">
<array_value type="STRING">ID001</array_value>
<array_value type="STRING">ID003</array_value>
</itemID>
<score type="INTEGER">95</score>
<result type="BOOLEAN">true</result>
</array_value>
</root>
XmlDocument2
<?xml version="1.0" encoding="UTF-8"?>
<root>
<object1>
<name>Sample001</name>
<itemID type="ARRAY">
<array_value>ID001</array_value>
</itemID>
<score type="REAL">15.5</score>
<result>null</result>
</object1>
<object2>
<name>Sample002</name>
<itemID>
<array_value>ID002</array_value>
</itemID>
<score>35.5</score>
<result>false</result>
</object2>
<object3>
<name>Sample003</name>
<itemID type="ARRAY">
<array_value>ID001</array_value>
<array_value>ID002</array_value>
</itemID>
<score type="INTEGER">90</score>
<result>true</result>
</object3>
<object4>
<name>Sample004</name>
<itemID>
<array_value>ID001</array_value>
<array_value>ID003</array_value>
</itemID>
<score>95</score>
<result>true</result>
</object4>
</root>
Sample: main.c
#include <stdio.h>
#include "lib.h"
#include "logapi.h"
#include "convertFormat.h"
int DBG_SAMPLE_CONVERT_FORMAT_ERROR = 1;
int DBG_SAMPLE_CONVERT_FORMAT_INFO = 1;
int DBG_SAMPLE_CONVERT_FORMAT_DEBUG = 1;
void sampleConvertJsonToXml();
void sampleConvertXmlToJson();
void main(void)
{
Cursor(AUTOWRAP);
while (1) {
printf("1:JSON -> XML\n");
printf("2:XML -> JSON\n");
while (1) {
if (kbhit()) {
int key = getchar();
if (key == '1') {
sampleConvertJsonToXml();
break;
}
if (key == '2') {
sampleConvertXmlToJson();
break;
}
}
Idle();
}
}
}
const char* jsonText1 = "["
"{\"name\": \"Sample001\", "
"\"itemID\": [\"ID001\"], "
"\"score\": 0, \"result\": null}, "
"{\"name\": \"Sample002\", "
"\"itemID\": [\"ID001\", \"ID002\"], "
"\"score\": 35.5, \"result\": false},"
"{\"name\": \"Sample003\", "
"\"itemID\": [\"ID001\", \"ID003\"], "
"\"score\": 95, \"result\": true}"
"]";
const char* jsonText2 = "{"
"\"object1\":{\"name\": \"Sample001\", "
"\"itemID\": [\"ID001\"], "
"\"score\": 15.5, ""\"result\": null}, "
"\"object2\":{\"name\": \"Sample002\", "
"\"itemID\": [\"ID002\"], "
"\"score\": 35.5, \"result\": false},"
"\"object3\":{\"name\": \"Sample003\", "
"\"itemID\": [\"ID001\", \"ID002\"], "
"\"score\": 90, \"result\": true},"
"\"object4\":{\"name\": \"Sample004\", "
"\"itemID\": [\"ID001\", \"ID003\"], "
"\"score\": 95, \"result\": true}"
"}";
void sampleConvertJsonToXml()
{
convertJsonToXml(jsonText1, "XML1.XML");
/* Output
<?xml version="1.0" encoding="UTF-8"?>
<root type="ARRAY">
<array_value type="OBJECT">
<name type="STRING">Sample001</name>
<itemID type="ARRAY">
<array_value type="STRING">ID001</array_value>
</itemID>
<score type="INTEGER">0</score>
<result type="NULL">null</result>
</array_value>
<array_value type="OBJECT">
<name type="STRING">Sample002</name>
<itemID type="ARRAY">
<array_value type="STRING">ID001</array_value>
<array_value type="STRING">ID002</array_value>
</itemID>
<score type="REAL">35.5</score>
<result type="BOOLEAN">false</result>
</array_value>
<array_value type="OBJECT">
<name type="STRING">Sample003</name>
<itemID type="ARRAY">
<array_value type="STRING">ID001</array_value>
<array_value type="STRING">ID003</array_value>
</itemID>
<score type="INTEGER">95</score>
<result type="BOOLEAN">true</result>
</array_value>
</root>
*/
convertJsonToXml(jsonText2, "XML2.XML");
/* Output
<?xml version="1.0" encoding="UTF-8"?>
<root type="OBJECT">
<object1 type="OBJECT">
<name type="STRING">Sample001</name>
<itemID type="ARRAY">
<array_value type="STRING">ID001</array_value>
</itemID>
<score type="REAL">15.5</score>
<result type="NULL">null</result>
</object1>
<object2 type="OBJECT">
<name type="STRING">Sample002</name>
<itemID type="ARRAY">
<array_value type="STRING">ID002</array_value>
</itemID>
<score type="REAL">35.5</score>
<result type="BOOLEAN">false</result>
</object2>
<object3 type="OBJECT">
<name type="STRING">Sample003</name>
<itemID type="ARRAY">
<array_value type="STRING">ID001</array_value>
<array_value type="STRING">ID002</array_value>
</itemID>
<score type="INTEGER">90</score>
<result type="BOOLEAN">true</result>
</object3>
<object4 type="OBJECT">
<name type="STRING">Sample004</name>
<itemID type="ARRAY">
<array_value type="STRING">ID001</array_value>
<array_value type="STRING">ID003</array_value>
</itemID>
<score type="INTEGER">95</score>
<result type="BOOLEAN">true</result>
</object4>
</root>
*/
}
const char* XmlDocument1 =
"<?xml version=\"1.0\" encoding=\"UTF-8\"?>"
"<root type=\"ARRAY\">"
" <array_value type=\"OBJECT\">"
" <name type=\"STRING\">Sample001</name>"
" <itemID type=\"ARRAY\">"
" <array_value type=\"STRING\">ID001</array_value>"
" </itemID>"
" <score type=\"INTEGER\">0</score>"
" <result type=\"NULL\">null</result>"
" </array_value>"
" <array_value type=\"OBJECT\">"
" <name type=\"STRING\">Sample002</name>"
" <itemID type=\"ARRAY\">"
" <array_value type=\"STRING\">ID001</array_value>"
" <array_value type=\"STRING\">ID002</array_value>"
" </itemID>"
" <score type=\"REAL\">35.5</score>"
" <result type=\"BOOLEAN\">false</result>"
" </array_value>"
" <array_value type=\"OBJECT\">"
" <name type=\"STRING\">Sample003</name>"
" <itemID type=\"ARRAY\">"
" <array_value type=\"STRING\">ID001</array_value>"
" <array_value type=\"STRING\">ID003</array_value>"
" </itemID>"
" <score type=\"INTEGER\">95</score>"
" <result type=\"BOOLEAN\">true</result>"
" </array_value>"
"</root>";
const char* XmlDocument2 =
"<?xml version=\"1.0\" encoding=\"UTF-8\"?>"
"<root>"
" <object1>"
" <name>Sample001</name>"
" <itemID type=\"ARRAY\">"
" <array_value>ID001</array_value>"
" </itemID>"
" <score type=\"REAL\">15.5</score>"
" <result>null</result>"
" </object1>"
" <object2>"
" <name>Sample002</name>"
" <itemID>"
" <array_value>ID002</array_value>"
" </itemID>"
" <score>35.5</score>"
" <result>false</result>"
" </object2>"
" <object3>"
" <name>Sample003</name>"
" <itemID type=\"ARRAY\">"
" <array_value>ID001</array_value>"
" <array_value>ID002</array_value>"
" </itemID>"
" <score type=\"INTEGER\">90</score>"
" <result>true</result>"
" </object3>"
" <object4>"
" <name>Sample004</name>"
" <itemID>"
" <array_value>ID001</array_value>"
" <array_value>ID003</array_value>"
" </itemID>"
" <score>95</score>"
" <result>true</result>"
" </object4>"
"</root>";
void sampleConvertXmlToJson()
{
convertXmlToJson(XmlDocument1, "JSON1.TXT");
/* Output
[
{
"name": "Sample001",
"itemID": [
"ID001"
],
"score": 0,
"result": null
},
{
"name": "Sample002",
"itemID": [
"ID001",
"ID002"
],
"score": 35.5,
"result": false
},
{
"name": "Sample003",
"itemID": [
"ID001",
"ID003"
],
"score": 95,
"result": true
}
]
*/
convertXmlToJson(XmlDocument2, "JSON2.TXT");
/* Output
{
"object1": {
"name": "Sample001",
"itemID": [
"ID001"
],
"score": 15.5,
"result": null
},
"object2": {
"name": "Sample002",
"itemID": [
"ID002"
],
"score": "35.5",
"result": false
},
"object3": {
"name": "Sample003",
"itemID": [
"ID001",
"ID002"
],
"score": 90,
"result": true
},
"object4": {
"name": "Sample004",
"itemID": [
"ID001",
"ID003"
],
"score": "95",
"result": true
}
}
*/
}
Sample: convertFormat.h
/*
* Includes jansson library
* This software is released under the MIT License.
*
* Refer https://opensource.org/licenses/mit-license.php
* Refer https://jansson.readthedocs.io/en/latest/
* Refer https://github.com/akheron/jansson/releases
*/
#ifndef CONVERT_FORMAT_H_
#define CONVERT_FORMAT_H_
#include "XML.h"
#include "jansson.h"
#define CONVERT_FORMAT_TAG "[CONVERT_FORMAT]"
#define CONVERT_FORMAT_SUCCESS 0
#define CONVERT_FORMAT_ERROR (-1)
#define ATTRUBUTE_TYPE "type"
#define JSON_TYPE_NAME_OBJECT "OBJECT"
#define JSON_TYPE_NAME_ARRAY "ARRAY"
#define JSON_TYPE_NAME_STRING "STRING"
#define JSON_TYPE_NAME_INTEGER "INTEGER"
#define JSON_TYPE_NAME_REAL "REAL"
#define JSON_TYPE_NAME_BOOLEAN "BOOLEAN"
#define JSON_TYPE_NAME_NULL "NULL"
typedef enum {
ORIGIN_JSON_OBJECT,
ORIGIN_JSON_ARRAY,
ORIGIN_JSON_STRING,
ORIGIN_JSON_INTEGER,
ORIGIN_JSON_REAL,
ORIGIN_JSON_BOOLEAN,
ORIGIN_JSON_NULL,
ORIGIN_JSON_OTHER,
ORIGIN_JSON_INIT,
ORIGIN_JSON_MAX
} origin_json_type;
extern void Idle(void);
int jsonAnalysisFromJson(json_t* pRoot);
int jsonAnalysis(const char* pText);
int integerToStr(json_int_t jsonInt, int valueStrLength, char* pValueStr);
int realToStr(double real, int valueStrLength, char* pValueStr);
int strToInteger(char* pStr, long* pValue);
int strToReal(char* pStr, double* pValue);
int setConvertedFormatKeyNode(XML_HANDLE hXml, char* pJsonTypeName,
char* pNodeKey, char* pNodeValue,
origin_json_type parentType, XML_Node** ppParentNode);
int setJsonTypeNameAndValueStr(json_t* pValue, char** ppJsonTypeName, char** ppValueStr);
int setRootNodeAttribute(XML_HANDLE hXml, origin_json_type parentType, char* pJsonTypeName);
int setObjectOrArrayAddNode(XML_HANDLE hXml, char* pJsonTypeName,
char* pNodeKey, char* pNodeValue, XML_Node** ppParentNode,
origin_json_type currentType, XML_Node** ppCurrentNode);
int jsonToXml(json_t* pRoot, XML_HANDLE hXml,
origin_json_type parentType, XML_Node** ppParentNode);
void convertJsonToXml(const char* pJsonText, char* pFileName);
int getAttributeJsonType(XML_HANDLE hXml, XML_Node** ppParentNode,
origin_json_type* pJsonType);
int analysisJsonType(XML_Node** ppCurrentNode, origin_json_type* pJsonType);
int xmlToJson(json_t** ppRoot, XML_HANDLE hXml, XML_Node** ppCurrentNode,
origin_json_type parentType, json_t** ppAppendJson, char** ppAppendJsonkey);
void convertXmlToJson(const char* XmlDocument, char* pFileName);
#endif /* CONVERT_FORMAT_H_ */
Sample: convertFormat.c
/*
* Includes jansson library
* This software is released under the MIT License.
*
* Refer https://opensource.org/licenses/mit-license.php
* Refer https://jansson.readthedocs.io/en/latest/
* Refer https://github.com/akheron/jansson/releases
*/
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <float.h>
#include <math.h>
#include <errno.h>
#include <limits.h>
#include "CodeConversion.h"
#include "lib.h"
#include "logapi.h"
#include "convertFormat.h"
//Log setting
int DBG_JANSSON_API_ERROR = 1;
int DBG_JANSSON_API_INFO = 1;
int DBG_JANSSON_API_DEBUG = 0;
int DBG_CONVERT_FORMAT_ERROR = 1;
int DBG_CONVERT_FORMAT_INFO = 1;
int DBG_CONVERT_FORMAT_DEBUG = 0;
char convertFormatApiVersion[] = "1.00";
const char ROOT_PATH[] = "/";
const char OBJECT_VALUE[] = "object_value";
const char ARRAY_VALUE[] = "array_value";
const int VALUE_STR_LEN_MAX = 32;
//[In]pRoot: json.
int jsonAnalysisFromJson(json_t* pRoot)
{
char* pJsonText = NULL;
char* pEncodeText = NULL;
char* pSeparateText = NULL;
int errorCode = 0;
size_t outputLength = 0;
if (!pRoot) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR, "%s jsonAnalysisFromJson. parameter error.\n",
CONVERT_FORMAT_TAG);
return CONVERT_FORMAT_ERROR;
}
pJsonText = json_dumps(pRoot, JSON_ENCODE_ANY | JSON_INDENT(2));
if (!pJsonText) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR, "%s json_dumps error.\n", CONVERT_FORMAT_TAG);
return CONVERT_FORMAT_ERROR;
}
pEncodeText = CONV_Utf8ToCP437oseString(pJsonText, strlen(pJsonText),
&errorCode, &outputLength);
if (!pEncodeText) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s jsonAnalysisFromJson. convert string error. errorCode: %d.\n",
CONVERT_FORMAT_TAG, errorCode);
free(pJsonText);
return CONVERT_FORMAT_ERROR;
}
LOG_PRINTF(DBG_CONVERT_FORMAT_INFO, "%s JSON Data: \n", CONVERT_FORMAT_TAG);
pSeparateText = strtok(pEncodeText, "\n");
LOG_PRINTF(DBG_CONVERT_FORMAT_INFO, "%s %s\n", CONVERT_FORMAT_TAG, pSeparateText);
while (pSeparateText != NULL) {
pSeparateText = strtok(NULL, "\n");
LOG_PRINTF(DBG_CONVERT_FORMAT_INFO, "%s %s\n", CONVERT_FORMAT_TAG, pSeparateText);
}
free(pEncodeText);
free(pJsonText);
return CONVERT_FORMAT_SUCCESS;
}
//[In]pText: text.
int jsonAnalysis(const char* pText)
{
json_t* pRoot = NULL;
json_error_t error;
int result = CONVERT_FORMAT_SUCCESS;
if (!pText) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR, "%s jsonAnalysis. parameter error.\n",
CONVERT_FORMAT_TAG);
return CONVERT_FORMAT_ERROR;
}
pRoot = json_loads(pText, 0, &error);
if (!pRoot) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR, "%s json_loads. error: on line %d: %s\n",
CONVERT_FORMAT_TAG, error.line, error.text);
return CONVERT_FORMAT_ERROR;
}
result = jsonAnalysisFromJson(pRoot);
json_decref(pRoot);
if (result != CONVERT_FORMAT_SUCCESS) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR, "%s file: %s, line:%d, error.\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
return CONVERT_FORMAT_ERROR;
}
return CONVERT_FORMAT_SUCCESS;
}
//[In]jsonInt: a jansson integer value.
//[In]valueStrLength: a buffer memory length.
//[Out]pValueStr: Convert a integer value to a string value.
int integerToStr(json_int_t jsonInt, int valueStrLength, char* pValueStr)
{
memset(pValueStr, 0, valueStrLength);
int valueStrResult = sprintf(pValueStr, "%ld", jsonInt);
if (valueStrResult < 0) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR, "%s file: %s, line:%d, integerToStr.\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
return CONVERT_FORMAT_ERROR;
}
return CONVERT_FORMAT_SUCCESS;
}
//[In]real: a double value.
//[In]valueStrLength: a buffer memory length.
//[Out]pValueStr: Convert a double value to a string value.
int realToStr(double real, int valueStrLength, char* pValueStr)
{
memset(pValueStr, 0, valueStrLength);
int valueStrResult = sprintf(pValueStr, "%lg", real);
if (valueStrResult < 0) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR, "%s file: %s, line:%d, realToStr.\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
return CONVERT_FORMAT_ERROR;
}
return CONVERT_FORMAT_SUCCESS;
}
//[In]pStr
//[Out]pValue
int strToInteger(char* pStr, long* pValue)
{
errno = 0;
char* pIntegerEndStr = NULL;
long longValue = 0;
if ((pStr == NULL) || (pValue == NULL)) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR, "%s file: %s, line:%d, parameter error.\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
return CONVERT_FORMAT_ERROR;
}
longValue = strtol(pStr, &pIntegerEndStr, 10);
if ((longValue == LONG_MIN || longValue == LONG_MAX) && errno == ERANGE) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR, "%s file: %s, line:%d, strtol error.\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
return CONVERT_FORMAT_ERROR;
}
else if (!pIntegerEndStr) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR, "%s file: %s, line:%d, strtol error.\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
return CONVERT_FORMAT_ERROR;
}
*pValue = longValue;
return CONVERT_FORMAT_SUCCESS;
}
//[In]pStr
//[Out]pValue
int strToReal(char* pStr, double* pValue)
{
errno = 0;
char* pEndRealStr = NULL;
double realValue = 0;
if ((pStr == NULL) || (pValue == NULL)) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR, "%s file: %s, line:%d, parameter error.\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
return CONVERT_FORMAT_ERROR;
}
realValue = strtod(pStr, &pEndRealStr);
if (errno) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR, "%s file: %s, line:%d, strtod error.\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
return CONVERT_FORMAT_ERROR;
}
*pValue = realValue;
return CONVERT_FORMAT_SUCCESS;
}
//[In]hXml: XML_HANDLE
//[In]pJsonTypeName: json type name. Ex)OBJECT, ARRAY, STRING, etc.
//[In]pNodeKey: node key.
//[In]pNodeValue: node value.
//[In]parentType: parent type.
//[In]ppParentNode: address of parrent node address.
int setConvertedFormatKeyNode(XML_HANDLE hXml, char* pJsonTypeName,
char* pNodeKey, char* pNodeValue,
origin_json_type parentType, XML_Node** ppParentNode)
{
int errorCode = 0;
XML_Node* pXmlNode = NULL;
if (parentType == ORIGIN_JSON_INIT) {
pXmlNode = XML_GetRootNode(hXml, &errorCode);
if (!pXmlNode) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, XML_GetRootNode(). error:%d\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__, errorCode);
return CONVERT_FORMAT_ERROR;
}
}
else {
pXmlNode = XML_SetChildNodeValueByPath(hXml, *ppParentNode, pNodeKey,
pNodeValue, &errorCode);
if (!pXmlNode) {
if (errorCode == XML_NO_VALUE_IN_INTERMEDIATE_NODE) {
return CONVERT_FORMAT_SUCCESS;
}
else {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, XML_SetChildNodeValueByPath(). error:%d.\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__, errorCode);
return CONVERT_FORMAT_ERROR;
}
}
else {
if (!XML_SetAttribute(hXml, pXmlNode, ATTRUBUTE_TYPE, pJsonTypeName, &errorCode)) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, XML_SetAttribute(). error:%d\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__, errorCode);
return CONVERT_FORMAT_ERROR;
}
}
}
return CONVERT_FORMAT_SUCCESS;
}
//[In]pValue: a Jansson value.
//[Out]pJsonTypeName: JSON type name. Ex) INTEGER, REAL, etc. Need to free memory.
//[Out]pValueStr: Convert a JSON value to a string value. Local language. Need to free memory.
int setJsonTypeNameAndValueStr(json_t* pValue, char** ppJsonTypeName, char** ppValueStr)
{
int valueStrResult = -1;
char* pEncodeText = NULL;
char* pTempStr = NULL;
int errorCode = 0;
size_t outputLength = 0;
size_t len = 0;
const char TRUE_VALUE[] = "true";
const char FALSE_VALUE[] = "false";
const char NULL_VALUE[] = "null";
if (json_is_string(pValue)) {
len = strlen(json_string_value(pValue)) + 1;
pTempStr = malloc(len);
if (pTempStr == NULL) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, Cannot allocate memory.\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
goto Exit;
}
memset(pTempStr, 0, len);
strcpy(pTempStr, json_string_value(pValue));
len = strlen(JSON_TYPE_NAME_STRING) + 1;
*ppJsonTypeName = malloc(len);
if ((*ppJsonTypeName) == NULL) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, Cannot allocate memory.\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
goto Exit;
}
memset(*ppJsonTypeName, 0, len);
strcpy(*ppJsonTypeName, JSON_TYPE_NAME_STRING);
}
else if (json_is_integer(pValue)) {
pTempStr = malloc(VALUE_STR_LEN_MAX);
if (pTempStr == NULL) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, Cannot allocate memory.\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
goto Exit;
}
memset(pTempStr, 0, len);
valueStrResult = integerToStr(json_integer_value(pValue), VALUE_STR_LEN_MAX, pTempStr);
if (valueStrResult != CONVERT_FORMAT_SUCCESS) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR, "%s file: %s, line:%d, integerToStr().\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
goto Exit;
}
len = strlen(JSON_TYPE_NAME_INTEGER) + 1;
*ppJsonTypeName = malloc(len);
if ((*ppJsonTypeName) == NULL) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, Cannot allocate memory.\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
goto Exit;
}
memset(*ppJsonTypeName, 0, len);
strcpy(*ppJsonTypeName, JSON_TYPE_NAME_INTEGER);
}
else if (json_is_real(pValue)) {
pTempStr = malloc(VALUE_STR_LEN_MAX);
if (pTempStr == NULL) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, Cannot allocate memory.\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
goto Exit;
}
memset(pTempStr, 0, len);
valueStrResult = realToStr(json_real_value(pValue), VALUE_STR_LEN_MAX, pTempStr);
if (valueStrResult != CONVERT_FORMAT_SUCCESS) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR, "%s file: %s, line:%d, realToStr().\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
goto Exit;
}
len = strlen(JSON_TYPE_NAME_REAL) + 1;
*ppJsonTypeName = malloc(len);
if ((*ppJsonTypeName) == NULL) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, Cannot allocate memory.\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
goto Exit;
}
memset(*ppJsonTypeName, 0, len);
strcpy(*ppJsonTypeName, JSON_TYPE_NAME_REAL);
}
else if (json_is_true(pValue)) {
len = strlen(TRUE_VALUE) + 1;
pTempStr = malloc(len);
if (pTempStr == NULL) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, Cannot allocate memory.\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
goto Exit;
}
memset(pTempStr, 0, len);
strcpy(pTempStr, TRUE_VALUE);
len = strlen(JSON_TYPE_NAME_BOOLEAN) + 1;
*ppJsonTypeName = malloc(len);
if ((*ppJsonTypeName) == NULL) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, Cannot allocate memory.\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
goto Exit;
}
memset(*ppJsonTypeName, 0, len);
strcpy(*ppJsonTypeName, JSON_TYPE_NAME_BOOLEAN);
}
else if (json_is_false(pValue)) {
len = strlen(FALSE_VALUE) + 1;
pTempStr = malloc(len);
if (pTempStr == NULL) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, Cannot allocate memory.\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
goto Exit;
}
memset(pTempStr, 0, len);
strcpy(pTempStr, FALSE_VALUE);
len = strlen(JSON_TYPE_NAME_BOOLEAN) + 1;
*ppJsonTypeName = malloc(len);
if ((*ppJsonTypeName) == NULL) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, Cannot allocate memory.\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
goto Exit;
}
memset(*ppJsonTypeName, 0, len);
strcpy(*ppJsonTypeName, JSON_TYPE_NAME_BOOLEAN);
}
else if (json_is_null(pValue)) {
len = strlen(NULL_VALUE) + 1;
pTempStr = malloc(len);
if (pTempStr == NULL) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, Cannot allocate memory.\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
goto Exit;
}
memset(pTempStr, 0, len);
strcpy(pTempStr, NULL_VALUE);
len = strlen(JSON_TYPE_NAME_NULL) + 1;
*ppJsonTypeName = malloc(len);
if ((*ppJsonTypeName) == NULL) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, Cannot allocate memory.\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
goto Exit;
}
memset(*ppJsonTypeName, 0, len);
strcpy(*ppJsonTypeName, JSON_TYPE_NAME_NULL);
}
else {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, setJsonTypeNameAndValueStr. Other case.\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
goto Exit;
}
pEncodeText = CONV_Utf8ToCP437oseString(pTempStr, strlen(pTempStr),
&errorCode, &outputLength);
if (!pEncodeText) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR, "%s file: %s, line:%d, errorCode: %d\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__, errorCode);
goto Exit;
}
len = outputLength + 1;
*ppValueStr = malloc(len);
if ((*ppValueStr) == NULL) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, Cannot allocate memory.\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
goto Exit;
}
memset(*ppValueStr, 0, len);
strcpy(*ppValueStr, pEncodeText);
free(pEncodeText);
free(pTempStr);
return CONVERT_FORMAT_SUCCESS;
Exit:
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR, "%s file: %s, line:%d, [error]Exit.\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
if (pEncodeText)
free(pEncodeText);
if (pTempStr)
free(pTempStr);
return CONVERT_FORMAT_ERROR;
}
int setRootNodeAttribute(XML_HANDLE hXml, origin_json_type parentType, char* pJsonTypeName)
{
int errorCode = 0;
XML_Node* pXmlNode = NULL;
if (parentType == ORIGIN_JSON_INIT) {
pXmlNode = XML_GetRootNode(hXml, &errorCode);
if (!pXmlNode) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, XML_GetRootNode(). error:%d\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__, errorCode);
return CONVERT_FORMAT_ERROR;
}
if (!XML_SetAttribute(hXml, pXmlNode, ATTRUBUTE_TYPE, pJsonTypeName, &errorCode)) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, XML_SetAttribute(). error:%d\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__, errorCode);
return CONVERT_FORMAT_ERROR;
}
return CONVERT_FORMAT_SUCCESS;
}
return CONVERT_FORMAT_ERROR;
}
//[In]hXml
//[In]pJsonTypeName
//[In]pNodeKey
//[In]pNodeValue
//[In]ppParentNode
//[In]currentType
//[Out]ppCurrentNode
int setObjectOrArrayAddNode(XML_HANDLE hXml, char* pJsonTypeName,
char* pNodeKey, char* pNodeValue, XML_Node** ppParentNode,
origin_json_type currentType, XML_Node** ppCurrentNode)
{
int errorCode = 0;
if (pNodeKey != NULL && strlen(pNodeKey) > 0) {
*ppCurrentNode = XML_AddChildNode(hXml, *ppParentNode, pNodeKey,
pNodeValue, &errorCode);
}
else {
switch (currentType) {
case ORIGIN_JSON_OBJECT:
*ppCurrentNode = XML_AddChildNode(hXml, *ppParentNode,
OBJECT_VALUE, pNodeValue, &errorCode);
break;
case ORIGIN_JSON_ARRAY:
*ppCurrentNode = XML_AddChildNode(hXml, *ppParentNode,
ARRAY_VALUE, pNodeValue, &errorCode);
break;
default:
LOG_PRINTF(DBG_CONVERT_FORMAT_INFO,
"%s [CREATE_XML]setObjectOrArrayAddNode(). currentType:%d.\n",
CONVERT_FORMAT_TAG, currentType);
break;
}
}
if (!(*ppCurrentNode)) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, XML_AddChildNode(). error:%d.\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__, errorCode);
return CONVERT_FORMAT_ERROR;
}
else {
if (!XML_SetAttribute(hXml, *ppCurrentNode, ATTRUBUTE_TYPE,
pJsonTypeName, &errorCode)) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, XML_SetAttribute(). error:%d\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__, errorCode);
return CONVERT_FORMAT_ERROR;
}
}
return CONVERT_FORMAT_SUCCESS;
}
//[In]pRoot
//[In]hXml
//[In]parentType
//[Out]ppParentNode
int jsonToXml(json_t* pRoot, XML_HANDLE hXml,
origin_json_type parentType, XML_Node** ppParentNode)
{
const char* pKey = NULL;
json_t* pValue = NULL;
void* pTmp = NULL;
int i = 0;
size_t index = 0;
XML_Node* pCurrentNode = NULL;
char* pValueStr = NULL;
char* pJsonTypeName = NULL;
int result = -1;
char* pEncodedKey = NULL;
int errorCode = 0;
size_t outputLength = 0;
switch (json_typeof(pRoot)) {
case JSON_OBJECT:
LOG_PRINTF(DBG_CONVERT_FORMAT_DEBUG, "%s {\n", CONVERT_FORMAT_TAG);
if (parentType == ORIGIN_JSON_INIT) {
if (setRootNodeAttribute(hXml, parentType,
JSON_TYPE_NAME_OBJECT) != CONVERT_FORMAT_SUCCESS) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, setRootNodeAttribute(). error:%d\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__, errorCode);
goto Exit;
}
}
json_object_foreach_safe(pRoot, pTmp, pKey, pValue) {
pEncodedKey = CONV_Utf8ToCP437oseString((char*)pKey, strlen(pKey),
&errorCode, &outputLength);
if (!pEncodedKey) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, errorCode: %d\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__, errorCode);
goto Exit;
}
if (json_is_object(pValue)) {
if (setObjectOrArrayAddNode(hXml, JSON_TYPE_NAME_OBJECT,
pEncodedKey, NULL, ppParentNode, ORIGIN_JSON_OBJECT,
&pCurrentNode) != CONVERT_FORMAT_SUCCESS) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, "
"object setObjectOrArrayAddChildNode().\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
goto Exit;
}
if (json_object_size(pValue) != 0) {
LOG_PRINTF(DBG_CONVERT_FORMAT_DEBUG,
"%s [PARSE_JSON]object_object. i:%d, pKey:%s, object.\n",
CONVERT_FORMAT_TAG, i, pEncodedKey);
result = jsonToXml(pValue, hXml, ORIGIN_JSON_OBJECT, &pCurrentNode);
if (result != CONVERT_FORMAT_SUCCESS) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, jsonToXml error.\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
goto Exit;
}
}
}
else if (json_is_array(pValue)) {
if (setObjectOrArrayAddNode(hXml, JSON_TYPE_NAME_ARRAY,
pEncodedKey, NULL, ppParentNode, ORIGIN_JSON_OBJECT,
&pCurrentNode) != CONVERT_FORMAT_SUCCESS) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, setObjectOrArrayAddChildNode().\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
goto Exit;
}
LOG_PRINTF(DBG_CONVERT_FORMAT_DEBUG,
"%s [PARSE_JSON]object_array. i:%d, pKey:%s, array.\n",
CONVERT_FORMAT_TAG, i, pEncodedKey);
result = jsonToXml(pValue, hXml, ORIGIN_JSON_ARRAY, &pCurrentNode);
if (result != CONVERT_FORMAT_SUCCESS) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, jsonToXml error.\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
goto Exit;
}
}
else {
//Need to free pJsonTypeName and pValueStr if you do not need it.
result = setJsonTypeNameAndValueStr(pValue, &pJsonTypeName, &pValueStr);
if (result != CONVERT_FORMAT_SUCCESS) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, setJsonTypeNameAndValueStr.\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
goto Exit;
}
LOG_PRINTF(DBG_CONVERT_FORMAT_DEBUG,
"%s [PARSE_JSON]object_other. i:%d, pKey:%s, pValueStr:%s\n",
CONVERT_FORMAT_TAG, i, pEncodedKey, pValueStr);
if (setConvertedFormatKeyNode(hXml, pJsonTypeName, pEncodedKey, pValueStr,
parentType, ppParentNode) != CONVERT_FORMAT_SUCCESS) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, setConvertedFormatKeyNode.\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
goto Exit;
}
free(pJsonTypeName);
free(pValueStr);
}
i += 1;
free(pEncodedKey);
}
LOG_PRINTF(DBG_CONVERT_FORMAT_DEBUG, "%s }\n", CONVERT_FORMAT_TAG);
break;
case JSON_ARRAY:
LOG_PRINTF(DBG_CONVERT_FORMAT_DEBUG, "%s [\n", CONVERT_FORMAT_TAG);
if (parentType == ORIGIN_JSON_INIT) {
if (setRootNodeAttribute(hXml, parentType,
JSON_TYPE_NAME_ARRAY) != CONVERT_FORMAT_SUCCESS) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, setRootNodeAttribute(). error:%d\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__, errorCode);
goto Exit;
}
}
json_array_foreach(pRoot, index, pValue) {
if (json_is_array(pValue)) {
if (setObjectOrArrayAddNode(hXml, JSON_TYPE_NAME_ARRAY,
pEncodedKey, NULL, ppParentNode, ORIGIN_JSON_ARRAY,
&pCurrentNode) != CONVERT_FORMAT_SUCCESS) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, "
"object setObjectOrArrayAddChildNode().\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
goto Exit;
}
if (json_array_size(pValue) != 0) {
LOG_PRINTF(DBG_CONVERT_FORMAT_DEBUG,
"%s [PARSE_JSON]array_array. index:%d, array.\n",
CONVERT_FORMAT_TAG, index);
result = jsonToXml(pValue, hXml, ORIGIN_JSON_ARRAY, &pCurrentNode);
if (result != CONVERT_FORMAT_SUCCESS) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, jsonToXml error.\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
goto Exit;
}
}
}
else if (json_is_object(pValue)) {
LOG_PRINTF(DBG_CONVERT_FORMAT_DEBUG,
"%s [PARSE_JSON]array_object. index:%d, object.\n",
CONVERT_FORMAT_TAG, index);
if (setObjectOrArrayAddNode(hXml, JSON_TYPE_NAME_OBJECT,
pEncodedKey, NULL, ppParentNode, ORIGIN_JSON_ARRAY,
&pCurrentNode) != CONVERT_FORMAT_SUCCESS) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, "
"object setObjectOrArrayAddChildNode().\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
goto Exit;
}
result = jsonToXml(pValue, hXml, ORIGIN_JSON_OBJECT, &pCurrentNode);
if (result != CONVERT_FORMAT_SUCCESS) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, jsonToXml error.\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
goto Exit;
}
}
else {
//Need to free pJsonTypeName and pValueStr if you do not need it.
result = setJsonTypeNameAndValueStr(pValue, &pJsonTypeName, &pValueStr);
if (result != CONVERT_FORMAT_SUCCESS) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, setJsonTypeNameAndValueStr.\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
goto Exit;
}
LOG_PRINTF(DBG_CONVERT_FORMAT_DEBUG,
"%s [PARSE_JSON]array_other. pKey:%s, pValueStr:%s\n",
CONVERT_FORMAT_TAG, pEncodedKey, pValueStr);
if (setObjectOrArrayAddNode(hXml, pJsonTypeName, pEncodedKey,
pValueStr, ppParentNode, ORIGIN_JSON_ARRAY,
&pCurrentNode) != CONVERT_FORMAT_SUCCESS) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, "
"object setObjectOrArrayAddChildNode().\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
goto Exit;
}
free(pJsonTypeName);
free(pValueStr);
}
i += 1;
}
LOG_PRINTF(DBG_CONVERT_FORMAT_DEBUG, "%s ]\n", CONVERT_FORMAT_TAG);
break;
default:
LOG_PRINTF(DBG_CONVERT_FORMAT_INFO, "%s JSON TYPE: %d \n",
CONVERT_FORMAT_TAG, json_typeof(pRoot));
goto Exit;
}
return CONVERT_FORMAT_SUCCESS;
Exit:
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR, "%s [error]Exit.\n", CONVERT_FORMAT_TAG);
if (pJsonTypeName)
free(pJsonTypeName);
if (pValueStr)
free(pValueStr);
if (pEncodedKey)
free(pEncodedKey);
return CONVERT_FORMAT_ERROR;
}
const char* XmlTemplate =
"<root>"
"</root>";
void convertJsonToXml(const char* pJsonText, char* pFileName)
{
json_t* pRoot = NULL;
json_error_t error;
XML_HANDLE hXml = NULL;
int result = 0;
int errorCode = 0;
size_t outputLength = 0;
char* utf8Str;
LOG_PRINTF(DBG_CONVERT_FORMAT_DEBUG, "%s convertJsonToXml\n", CONVERT_FORMAT_TAG);
utf8Str = CONV_CP437oseToUtf8String((char*)pJsonText, strlen(pJsonText),
&errorCode, &outputLength);
if (!utf8Str) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR, "%s convert error. error:%d\n",
CONVERT_FORMAT_TAG, errorCode);
goto Exit;
}
result = jsonAnalysis(utf8Str);
if (result != CONVERT_FORMAT_SUCCESS) {
goto Exit;
}
pRoot = json_loads(utf8Str, 0, &error);
free(utf8Str);
if (!pRoot) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, json_loads. error: on line %d: %s\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__, error.line, error.text);
goto Exit;
}
hXml = XML_CreateXmlObject(XML_LOCAL_STRING, XmlTemplate, 0, -1,
CONV_CP437oseToUtf8String, CONV_Utf8ToCP437oseString, &errorCode);
if (!hXml) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, XML_CreateXmlObject error. error:%d\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__, errorCode);
goto Exit;
}
XML_Node* xmlNode = XML_GetRootNode(hXml, &errorCode);
if (!xmlNode) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, XML_GetRootNode error. error:%d\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__, errorCode);
goto Exit;
}
result = jsonToXml(pRoot, hXml, ORIGIN_JSON_INIT, &xmlNode);
if (result != CONVERT_FORMAT_SUCCESS) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR, "%s file: %s, line:%d, jsonToXml error.\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
goto Exit;
}
else {
char fileStr[16];
memset(fileStr, 0, sizeof(fileStr));
if (pFileName && strlen(pFileName) >= 1 && strlen(pFileName) <= 12) {
sprintf(fileStr, "%s", pFileName);
}
else {
strcpy(fileStr, "JSON2XML.XML");
}
LOG_PRINTF(DBG_CONVERT_FORMAT_INFO, "%s File name:%s\n", CONVERT_FORMAT_TAG, fileStr);
if (XML_SaveAsXmlFile(hXml, "<?xml version=\"1.0\" encoding=\"UTF-8\"?>",
fileStr, true, &errorCode)) {
LOG_PRINTF(DBG_CONVERT_FORMAT_DEBUG, "%s XML_SaveAsXmlFile. Saved successfully\n",
CONVERT_FORMAT_TAG, errorCode);
}
else {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR, "%s XML_SaveAsXmlFile. error:%d\n",
CONVERT_FORMAT_TAG, errorCode);
}
XML_DumpXmlObject(hXml);
XML_ReleaseXmlObject(hXml, NULL);
}
json_decref(pRoot);
return;
Exit:
if (utf8Str)
free(utf8Str);
if (hXml)
XML_ReleaseXmlObject(hXml, NULL);
if (pRoot)
json_decref(pRoot);
return;
}
//[In]hXml
//[In]ppParentNode
//[Out]pJsonType
int getAttributeJsonType(XML_HANDLE hXml, XML_Node** ppParentNode, origin_json_type* pJsonType)
{
int errorCode = 0;
XML_Attribute* xmlAttr = XML_GetAttribute(hXml, *ppParentNode, &errorCode);
if (!xmlAttr) {
if (errorCode == XML_NOT_FOUND) { //No Attribute
return CONVERT_FORMAT_SUCCESS;
}
else {
*pJsonType = ORIGIN_JSON_OTHER;
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s getAttributeJsonType. XML_GetAttribute. error:%d.\n",
CONVERT_FORMAT_TAG, errorCode);
}
}
if (strcmp(JSON_TYPE_NAME_OBJECT, xmlAttr->value_raw) == 0) {
*pJsonType = ORIGIN_JSON_OBJECT;
}
else if (strcmp(JSON_TYPE_NAME_ARRAY, xmlAttr->value_raw) == 0) {
*pJsonType = ORIGIN_JSON_ARRAY;
}
else if (strcmp(JSON_TYPE_NAME_STRING, xmlAttr->value_raw) == 0) {
*pJsonType = ORIGIN_JSON_STRING;
}
else if (strcmp(JSON_TYPE_NAME_INTEGER, xmlAttr->value_raw) == 0) {
*pJsonType = ORIGIN_JSON_INTEGER;
}
else if (strcmp(JSON_TYPE_NAME_REAL, xmlAttr->value_raw) == 0) {
*pJsonType = ORIGIN_JSON_REAL;
}
else if (strcmp(JSON_TYPE_NAME_BOOLEAN, xmlAttr->value_raw) == 0) {
*pJsonType = ORIGIN_JSON_BOOLEAN;
}
else if (strcmp(JSON_TYPE_NAME_NULL, xmlAttr->value_raw) == 0) {
*pJsonType = ORIGIN_JSON_NULL;
}
else {
*pJsonType = ORIGIN_JSON_OTHER;
}
return CONVERT_FORMAT_SUCCESS;
}
//[In]ppCurrentNode
//[Out]jsonType
int analysisJsonType(XML_Node** ppCurrentNode, origin_json_type* pJsonType)
{
XML_Node* pChildNode = NULL;
XML_Node* pChildNextNode = NULL;
char* pValue = NULL;
if (ppCurrentNode == NULL || (*ppCurrentNode) == NULL || pJsonType == NULL) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR, "%s analysisJsonType parameter error.\n",
CONVERT_FORMAT_TAG);
return CONVERT_FORMAT_ERROR;
}
pChildNode = (*ppCurrentNode)->childNode;
if (pChildNode) { //ORIGIN_JSON_OBJECT or ORIGIN_JSON_ARRAY.
pChildNextNode = pChildNode->nextNode;
if (pChildNextNode) {
if (pChildNode->name_raw) {
if (pChildNextNode->name_raw) {
if (strcmp(pChildNode->name_raw,
pChildNextNode->name_raw) == 0) {
*pJsonType = ORIGIN_JSON_ARRAY;
}
else {
*pJsonType = ORIGIN_JSON_OBJECT;
}
}
else {
*pJsonType = ORIGIN_JSON_OBJECT;
}
}
else {
*pJsonType = ORIGIN_JSON_OBJECT;
}
}
else {
if (strcmp(pChildNode->name_raw, ARRAY_VALUE) == 0) {
*pJsonType = ORIGIN_JSON_ARRAY;
}
else {
*pJsonType = ORIGIN_JSON_OBJECT;
}
}
}
else {
//ORIGIN_JSON_STRING, ORIGIN_JSON_INTEGER, ORIGIN_JSON_REAL,
//ORIGIN_JSON_BOOLEAN or ORIGIN_JSON_NULL.
pValue = (*ppCurrentNode)->value_raw;
if (pValue) {
if (strcmp("true", pValue) == 0) {
*pJsonType = ORIGIN_JSON_BOOLEAN;
}
else if (strcmp("false", pValue) == 0) {
*pJsonType = ORIGIN_JSON_BOOLEAN;
}
else if (strcmp("null", pValue) == 0) {
*pJsonType = ORIGIN_JSON_NULL;
}
else { //ORIGIN_JSON_STRING, ORIGIN_JSON_INTEGER, ORIGIN_JSON_REAL
*pJsonType = ORIGIN_JSON_STRING;
}
}
else {
*pJsonType = ORIGIN_JSON_STRING;
}
}
return CONVERT_FORMAT_SUCCESS;
}
//[Out]ppRoot
//[In]hXml
//[In]ppCurrentNode
//[In]parentType
//[In]ppAppendJson
//[In]ppAppendJsonkey
int xmlToJson(json_t** ppRoot, XML_HANDLE hXml, XML_Node** ppCurrentNode,
origin_json_type parentType, json_t** ppAppendJson, char** ppAppendJsonkey)
{
int jsonResult = 0;
int result = CONVERT_FORMAT_SUCCESS;
XML_Node* pNextNode = NULL;
origin_json_type currentJsonType = ORIGIN_JSON_OTHER;
origin_json_type autoJsonType = ORIGIN_JSON_OTHER;
json_t* pCurrentJson = NULL;
char* pJsonKeyValue = NULL;
result = getAttributeJsonType(hXml, ppCurrentNode, ¤tJsonType);
if (result != CONVERT_FORMAT_SUCCESS) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, xmlToJson. getAttributeJsonType.\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
return CONVERT_FORMAT_ERROR;
}
else {
switch (currentJsonType) {
case ORIGIN_JSON_OBJECT:
case ORIGIN_JSON_ARRAY:
case ORIGIN_JSON_STRING:
case ORIGIN_JSON_INTEGER:
case ORIGIN_JSON_REAL:
case ORIGIN_JSON_BOOLEAN:
case ORIGIN_JSON_NULL:
break;
default:
result = analysisJsonType(ppCurrentNode, &autoJsonType);
if (result != CONVERT_FORMAT_SUCCESS) {
return CONVERT_FORMAT_ERROR;
}
break;
}
}
if (currentJsonType == ORIGIN_JSON_OTHER) {
currentJsonType = autoJsonType;
}
switch (currentJsonType) {
case ORIGIN_JSON_OBJECT:
pJsonKeyValue = (*ppCurrentNode)->name_raw;
if (parentType == ORIGIN_JSON_INIT) {
pCurrentJson = *ppRoot;
}
else {
pCurrentJson = json_object();
jsonResult = -1;
if (json_is_object(*ppAppendJson)) {
jsonResult = json_object_set_new(*ppAppendJson,
pJsonKeyValue, pCurrentJson);
}
else if (json_is_array(*ppAppendJson)) {
jsonResult = json_array_append_new(*ppAppendJson, pCurrentJson);
}
if (jsonResult != 0) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, xmlToJson. Cannot set JSON.\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
return CONVERT_FORMAT_ERROR;
}
}
LOG_PRINTF(DBG_CONVERT_FORMAT_DEBUG, "%s xmlToJson. object. pKey:%s\n",
CONVERT_FORMAT_TAG, pJsonKeyValue);
if ((*ppCurrentNode)->childNode) {
pNextNode = (*ppCurrentNode)->childNode;
Idle();
result = CONVERT_FORMAT_SUCCESS;
if (parentType == ORIGIN_JSON_INIT) {
result = xmlToJson(ppRoot, hXml, &pNextNode,
currentJsonType, &pCurrentJson, &pJsonKeyValue);
}
else {
result = xmlToJson(ppRoot, hXml, &pNextNode,
currentJsonType, &pCurrentJson, &pJsonKeyValue);
}
if (result != CONVERT_FORMAT_SUCCESS) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, xmlToJson. Cannot set JSON.\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
return CONVERT_FORMAT_ERROR;
}
}
break;
case ORIGIN_JSON_ARRAY:
pJsonKeyValue = (*ppCurrentNode)->name_raw;
if (parentType == ORIGIN_JSON_INIT) {
pCurrentJson = *ppRoot;
}
else {
pCurrentJson = json_array();
jsonResult = -1;
if (json_is_object(*ppAppendJson)) {
jsonResult = json_object_set_new(*ppAppendJson,
pJsonKeyValue, pCurrentJson);
}
else if (json_is_array(*ppAppendJson)) {
jsonResult = json_array_append_new(*ppAppendJson, pCurrentJson);
}
if (jsonResult != 0) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, xmlToJson. Cannot set JSON.\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
return CONVERT_FORMAT_ERROR;
}
}
LOG_PRINTF(DBG_CONVERT_FORMAT_DEBUG, "%s xmlToJson. array. pKey:%s.\n",
CONVERT_FORMAT_TAG, pJsonKeyValue);
if ((*ppCurrentNode)->childNode) {
pNextNode = (*ppCurrentNode)->childNode;
Idle();
result = CONVERT_FORMAT_SUCCESS;
if (parentType == ORIGIN_JSON_INIT) {
result = xmlToJson(ppRoot, hXml, &pNextNode, currentJsonType,
&pCurrentJson, &pJsonKeyValue);
}
else {
result = xmlToJson(ppRoot, hXml, &pNextNode,
currentJsonType, &pCurrentJson, &pJsonKeyValue);
}
if (result != CONVERT_FORMAT_SUCCESS) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, xmlToJson. Cannot set JSON.\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
return CONVERT_FORMAT_ERROR;
}
}
break;
case ORIGIN_JSON_STRING:
pJsonKeyValue = *ppAppendJsonkey;
if (json_is_object(*ppAppendJson)) {
LOG_PRINTF(DBG_CONVERT_FORMAT_DEBUG,
"%s xmlToJson. string object append name:%s, value:%s\n",
CONVERT_FORMAT_TAG, (*ppCurrentNode)->name_raw,
(*ppCurrentNode)->value_raw);
if ((*ppCurrentNode)->value_raw) {
jsonResult = json_object_set_new(*ppAppendJson, (*ppCurrentNode)->name_raw,
json_string((*ppCurrentNode)->value_raw));
}
else {
jsonResult = json_object_set_new(*ppAppendJson, (*ppCurrentNode)->name_raw,
json_string(""));
}
}
else if (json_is_array(*ppAppendJson)) {
LOG_PRINTF(DBG_CONVERT_FORMAT_DEBUG,
"%s xmlToJson. string array append name:%s, value:%s\n",
CONVERT_FORMAT_TAG, (*ppCurrentNode)->name_raw,
(*ppCurrentNode)->value_raw);
if ((*ppCurrentNode)->value_raw) {
jsonResult = json_array_append_new(*ppAppendJson,
json_string((*ppCurrentNode)->value_raw));
}
else {
jsonResult = json_array_append_new(*ppAppendJson, json_string(""));
}
}
break;
case ORIGIN_JSON_INTEGER:
pJsonKeyValue = *ppAppendJsonkey;
long longValue = 0;
result = strToInteger((*ppCurrentNode)->value_raw, &longValue);
if (result != CONVERT_FORMAT_SUCCESS) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, strToInteger error.\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
return CONVERT_FORMAT_ERROR;
}
if (json_is_object(*ppAppendJson)) {
LOG_PRINTF(DBG_CONVERT_FORMAT_DEBUG,
"%s xmlToJson. integer object append name:%s, value:%s\n",
CONVERT_FORMAT_TAG, (*ppCurrentNode)->name_raw,
(*ppCurrentNode)->value_raw);
jsonResult = json_object_set_new(*ppAppendJson, (*ppCurrentNode)->name_raw,
json_integer(longValue));
}
else if (json_is_array(*ppAppendJson))
{
LOG_PRINTF(DBG_CONVERT_FORMAT_DEBUG,
"%s xmlToJson. integer array append name:%s, value:%s\n",
CONVERT_FORMAT_TAG, (*ppCurrentNode)->name_raw,
(*ppCurrentNode)->value_raw);
jsonResult = json_array_append_new(*ppAppendJson, json_integer(longValue));
}
break;
case ORIGIN_JSON_REAL:
pJsonKeyValue = *ppAppendJsonkey;
double doubleValue = 0;
result = strToReal((*ppCurrentNode)->value_raw, &doubleValue);
if (result != CONVERT_FORMAT_SUCCESS) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, strToReal error.\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
return CONVERT_FORMAT_ERROR;
}
if (json_is_object(*ppAppendJson)) {
LOG_PRINTF(DBG_CONVERT_FORMAT_DEBUG,
"%s xmlToJson. real object append name:%s, value:%s\n",
CONVERT_FORMAT_TAG, (*ppCurrentNode)->name_raw,
(*ppCurrentNode)->value_raw);
jsonResult = json_object_set_new(*ppAppendJson, (*ppCurrentNode)->name_raw,
json_real(doubleValue));
}
else if (json_is_array(*ppAppendJson)) {
LOG_PRINTF(DBG_CONVERT_FORMAT_DEBUG,
"%s xmlToJson. real array append value:%s\n",
CONVERT_FORMAT_TAG, (*ppCurrentNode)->value_raw);
jsonResult = json_array_append_new(*ppAppendJson, json_real(doubleValue));
}
break;
case ORIGIN_JSON_BOOLEAN:
pJsonKeyValue = *ppAppendJsonkey;
if (strcmp("true", (*ppCurrentNode)->value_raw) == 0) {
if (json_is_object(*ppAppendJson)) {
LOG_PRINTF(DBG_CONVERT_FORMAT_DEBUG,
"%s xmlToJson. boolean object append name:%s, value:true\n",
CONVERT_FORMAT_TAG, (*ppCurrentNode)->name_raw);
jsonResult = json_object_set_new(*ppAppendJson, (*ppCurrentNode)->name_raw,
json_true());
}
else if (json_is_array(*ppAppendJson)) {
LOG_PRINTF(DBG_CONVERT_FORMAT_DEBUG,
"%s xmlToJson. boolean array append name:%s, value:true\n",
CONVERT_FORMAT_TAG, (*ppCurrentNode)->name_raw);
jsonResult = json_array_append_new(*ppAppendJson, json_true());
}
}
else if (strcmp("false", (*ppCurrentNode)->value_raw) == 0) {
if (json_is_object(*ppAppendJson)) {
LOG_PRINTF(DBG_CONVERT_FORMAT_DEBUG,
"%s xmlToJson. boolean object append value:false\n",
CONVERT_FORMAT_TAG);
jsonResult = json_object_set_new(*ppAppendJson, (*ppCurrentNode)->name_raw,
json_false());
}
else if (json_is_array(*ppAppendJson)) {
LOG_PRINTF(DBG_CONVERT_FORMAT_DEBUG,
"%s xmlToJson. boolean array append value:false\n",
CONVERT_FORMAT_TAG);
jsonResult = json_array_append_new(*ppAppendJson, json_false());
}
}
else {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR, "%s file: %s, line:%d, boolean error.\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
return CONVERT_FORMAT_ERROR;
}
break;
case ORIGIN_JSON_NULL:
pJsonKeyValue = *ppAppendJsonkey;
if (json_is_object(*ppAppendJson)) {
LOG_PRINTF(DBG_CONVERT_FORMAT_DEBUG,
"%s xmlToJson. null object append name:%s, value:null\n",
CONVERT_FORMAT_TAG, (*ppCurrentNode)->name_raw);
jsonResult = json_object_set_new(*ppAppendJson, (*ppCurrentNode)->name_raw,
json_null());
}
else if (json_is_array(*ppAppendJson)) {
LOG_PRINTF(DBG_CONVERT_FORMAT_DEBUG,
"%s xmlToJson. null array append value:null\n",
CONVERT_FORMAT_TAG);
jsonResult = json_array_append_new(*ppAppendJson, json_null());
}
break;
default:
pJsonKeyValue = *ppAppendJsonkey;
LOG_PRINTF(DBG_CONVERT_FORMAT_INFO, "%s xmlToJson. other pJsonKeyValue:%p\n",
CONVERT_FORMAT_TAG, pJsonKeyValue);
if (json_is_object(*ppAppendJson)) {
LOG_PRINTF(DBG_CONVERT_FORMAT_INFO,
"%s xmlToJson. other object append name:%s, value:%s\n",
CONVERT_FORMAT_TAG, (*ppCurrentNode)->name_raw,
(*ppCurrentNode)->value_raw);
jsonResult = json_object_set_new(*ppAppendJson, (*ppCurrentNode)->name_raw,
json_string((*ppCurrentNode)->value_raw));
}
else if (json_is_array(*ppAppendJson)) {
LOG_PRINTF(DBG_CONVERT_FORMAT_INFO,
"%s xmlToJson. other array append value:%s\n",
CONVERT_FORMAT_TAG, (*ppCurrentNode)->value_raw);
jsonResult = json_array_append_new(*ppAppendJson,
json_string((*ppCurrentNode)->value_raw));
}
break;
}
if (jsonResult != 0) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, xmlToJson. Cannot set JSON.\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
return CONVERT_FORMAT_ERROR;
}
if ((*ppCurrentNode)->nextNode) {
pNextNode = (*ppCurrentNode)->nextNode;
result = xmlToJson(ppRoot, hXml, &pNextNode, parentType, ppAppendJson, &pJsonKeyValue);
if (result != CONVERT_FORMAT_SUCCESS) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, xmlToJson. Cannot set JSON.\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
return CONVERT_FORMAT_ERROR;
}
}
return CONVERT_FORMAT_SUCCESS;
}
void convertXmlToJson(const char* XmlDocument, char* pFileName)
{
XML_HANDLE hXml = NULL;
json_t* pRoot = NULL;
json_t* pAppendJson = NULL;
char* pAppendJsonkey = NULL;
int errorCode = 0;
int result = 0;
LOG_PRINTF(DBG_CONVERT_FORMAT_DEBUG, "%s ConvertXmlToJson\n", CONVERT_FORMAT_TAG);
hXml = XML_CreateXmlObject(XML_LOCAL_STRING, XmlDocument, 0, -1,
CONV_CP437oseToUtf8String, CONV_Utf8ToCP437oseString, &errorCode);
if (!hXml) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, XML_CreateXmlObject error:%d\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__, errorCode);
goto Exit;
}
XML_DumpXmlObject(hXml);
XML_Node* xmlNode = XML_GetRootNode(hXml, &errorCode);
if (!xmlNode) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, XML_GetRootNode error:%d\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__, errorCode);
goto Exit;
}
origin_json_type currentJsonType = ORIGIN_JSON_OTHER;
result = getAttributeJsonType(hXml, &xmlNode, ¤tJsonType);
if (result != CONVERT_FORMAT_SUCCESS) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR, "%s file: %s, line:%d, getAttributeJsonType.\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
goto Exit;
}
if (currentJsonType == ORIGIN_JSON_OBJECT) {
pRoot = json_object();
}
else if (currentJsonType == ORIGIN_JSON_ARRAY) {
pRoot = json_array();
}
else {
origin_json_type autoJsonType = ORIGIN_JSON_OTHER;
analysisJsonType(&xmlNode, &autoJsonType);
if (autoJsonType == ORIGIN_JSON_OBJECT) {
pRoot = json_object();
}
else if (autoJsonType == ORIGIN_JSON_ARRAY) {
pRoot = json_array();
}
else {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, getAttributeJsonType. JSON TYPE ERROR.\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
goto Exit;
}
}
if (!pRoot) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR, "%s file: %s, line:%d, value is NULL.\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
goto Exit;
}
result = xmlToJson(&pRoot, hXml, &xmlNode, ORIGIN_JSON_INIT,
&pAppendJson, &pAppendJsonkey);
if (result != CONVERT_FORMAT_SUCCESS) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR, "%s file: %s, line:%d, xmlToJson error.\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
goto Exit;
}
result = jsonAnalysisFromJson(pRoot);
if (result != CONVERT_FORMAT_SUCCESS) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR,
"%s file: %s, line:%d, jsonAnalysisFromJson error.\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
goto Exit;
}
if (pFileName && strlen(pFileName) >= 1 && strlen(pFileName) <= 12) {
result = json_dump_file(pRoot, pFileName, JSON_ENCODE_ANY | JSON_INDENT(2));
}
else {
LOG_PRINTF(DBG_CONVERT_FORMAT_INFO, "%s File name:XML2JSON.TXT\n", CONVERT_FORMAT_TAG);
result = json_dump_file(pRoot, "XML2JSON.TXT", JSON_ENCODE_ANY | JSON_INDENT(2));
}
if (result != 0) {
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR, "%s file: %s, line:%d, json_dump_file error.\n",
CONVERT_FORMAT_TAG, __FILE__, __LINE__);
goto Exit;
}
json_decref(pRoot);
XML_ReleaseXmlObject(hXml, NULL);
return;
Exit:
LOG_PRINTF(DBG_CONVERT_FORMAT_ERROR, "%s [error]Exist.\n", CONVERT_FORMAT_TAG);
if (pRoot)
json_decref(pRoot);
if (hXml)
XML_ReleaseXmlObject(hXml, NULL);
return;
}
Note:
For JSON <-> XML conversion, the JSON type is an object or array.
For XML -> JSON conversion, If there is no attribute type = in XML, the type is automatically determined. Also, for convenience, the numerical value is judged by a character string.
| JSON type | JSON value | Type of automatic judgment |
|---|---|---|
| Object | A JSON object is a dictionary of key-value pairs. | Object |
| Array | A JSON array is an ordered collection of other JSON values. | Object or Array |
| String | The JSON string is a UTF-8 string. | String |
| Number | JSON numbers are integer and real values. | String |
| Boolean value | JSON boolean values are true and false values. | Boolean |
| null | JSON null is a null value. | null |
Regarding the array, it is judged whether it is an array under the following conditions.
- Use attribute type = "ARRAY"
- Use <array_value> tag
- Use multiple tags with the same name in succession
If you want to use a type other than the automatic judgment type, add the attribute type = to the XML.
See also
Last updated: 2022/01/26
